Exodus One

Highlights

• TI CC2652RB Zigbee/Thread chip for native Zigbee2MQTT and OpenThread RCP

• ESP32-C6: Wi-Fi 6 + Bluetooth 5 LE + Thread support

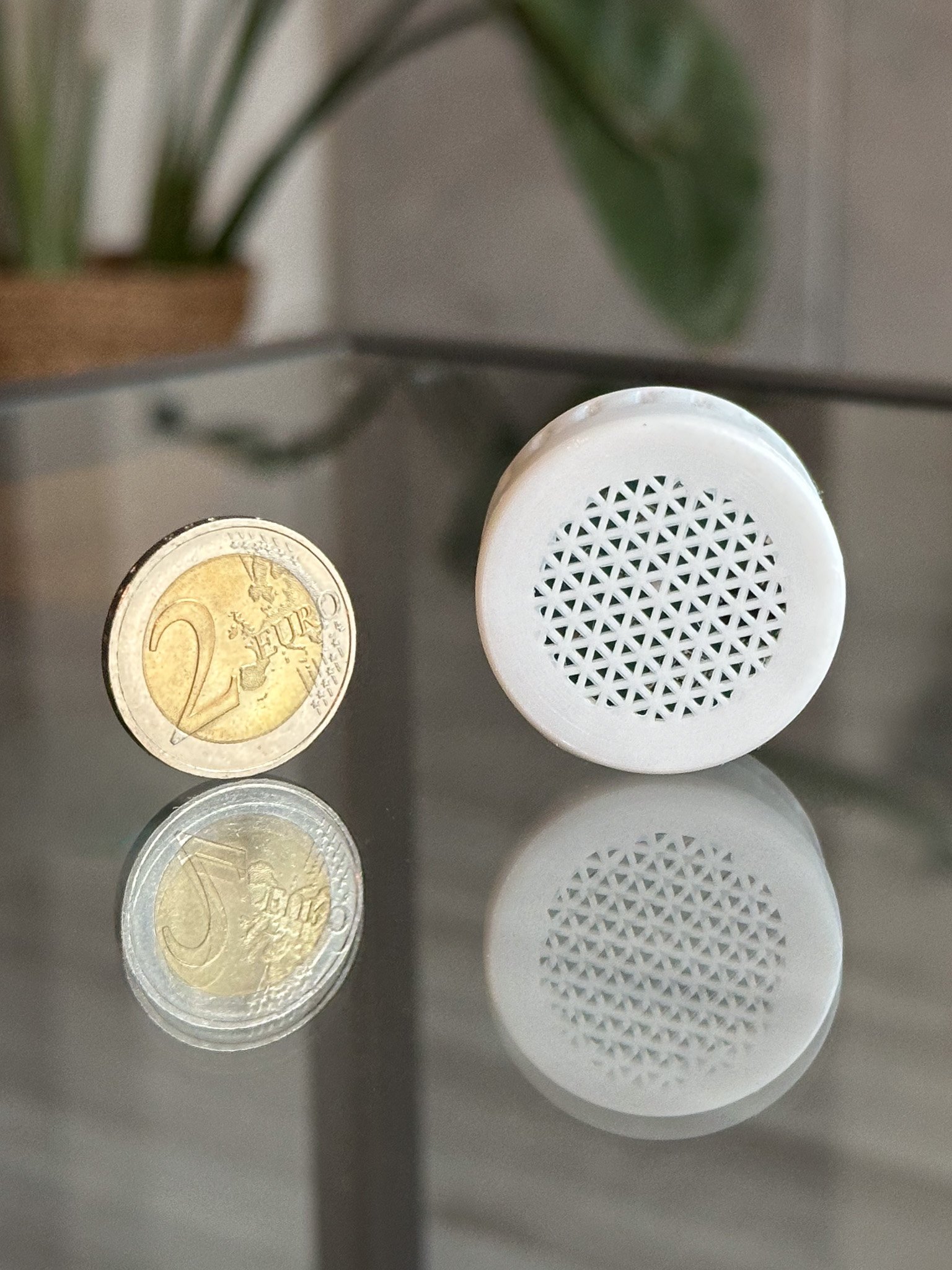

• Compact Ø 35 mm modular design

• Fully configurable through ESPHome dashboard

• Auto-calibration for mmWave noise and sensor offsets

• Supports custom firmware, OTA updates, and integration with Home Assistant and MQTT.

• ESPHome compatible – all values exposed via API or MQTT

• Can function as Zigbee Coordinator or Router to extend your mesh network

• Ideal for air-quality monitoring, occupancy tracking, and smart energy management

Integrated Sensors

1. LD2412 mmWave Sensor (24 GHz)

• Motion, presence, breathing, and distance detection up to 9 m

• ±75° wide-angle coverage

• Auto noise calibration

• Output values: presence, motion energy, distance, still/moving target detection, breathing rate

2. Bosch BME688 Environmental Sensor

• Measures temperature, humidity, air pressure, and gas/VOC index

• Integrated AI-based gas classification (BSEC 2.0) for air-quality insights

• Detects volatile organic compounds, CO₂ equivalents, and IAQ index

• High accuracy with self-calibration and compensation for temperature/humidity

3. Sensirion SCD41 CO₂ Sensor

• True photo-acoustic NDIR measurement technology

• CO₂ range up to 5 000 ppm

• Integrated temperature and humidity sensor for auto-compensation

• eCO₂ and IAQ calculation support

• Low-power mode and auto baseline calibration

4. AGS10 TVOC Sensor

• Real-time total volatile organic compound (TVOC) measurement

• High sensitivity to formaldehyde, ethanol, benzene, and household pollutants

• Outputs VOC ppb and VOC breath equivalent values

5. BH1750 Illuminance Sensor

• High-precision ambient light measurement (1 – 65 535 lx)

• Ideal for automation based on lighting conditions
